The FLAIRMO N2G‑DS4000 delivers nitrogen at 99.5% purity in a 0.23 m² footprint – eliminating the corrosion that compressed air causes inside fire sprinkler pipework.
The N2G-DS4000 is a nitrogen generator built specifically for dry pipe and pre-action sprinkler systems. Compressor, dryer, PSA nitrogen generation and automatic venting are combined in one cabinet, designed and manufactured in Denmark. We size the solution based on the pipe volume and number of zones in your installation, from a single riser to a car park with six sections.
With a footprint below 0.23 m², the N2G-DS4000 delivers continuous nitrogen supply at 99.5% purity, exceeding the industry standard at 98%. Every feature is designed to keep your fire protection system stable and corrosion-free – without any intervention during daily operation.
Pressurizes empty pipework rapidly using compressed air, then automatically switches to nitrogen mode and refills with nitrogen whenever pressure drops.
Automatically transitions to high-purity nitrogen mode (99.5% N₂) once target pressure is reached, ensuring continuous corrosion protection after any pressure event.
Integrated sensors track pressure every minute and perform automated AUTO-VENT O₂ checks every 6 hours across up to 6 individual risers - alerting before issues develop.
Built-in Modbus TCP/IP protocol and VNC Ethernet interface allow remote access to live operational data, trend graphs, and controls without on-site visits.
All-in-one cabinet fits into just 0.23 m² with no dedicated compressor room or special ventilation required - ideal for data centers, car parks, and storage facilities.
Features an integrated, self-regenerating adsorption dryer and 0.01 µm filtration to eliminate oil and moisture risk, requiring only simple annual service .
Facilities that rely on dry pipe or pre-action sprinkler systems face a common challenge: compressed air carries oxygen and moisture into the pipework, causing internal corrosion over time. Rust builds up on the pipe walls, narrowing the internal bore and increasing friction loss. To compensate for future pipe restrictions, hydraulic calculations for air-filled systems use a lower Hazen-Williams C-factor (C=100), forcing designers to specify larger pipe sizes. For critical infrastructure like data centers, car parks, cold storage, and commercial buildings, this means higher material and installation costs - and a system whose performance still declines as the pipes age. Nitrogen changes that equation completely. When nitrogen purity is maintained at 98% or higher, NFPA 13 allows a higher C-factor of C=120, acknowledging that pipes remain smooth and free of internal rust.
FLAIRMO’s N2G-DS4000 makes these benefits a reality in a compact 0.23 m² footprint. Delivering 99.5% nitrogen purity via automated multi-zone venting, it eliminates corrosion at the source. This allows engineers to design with smaller pipe volumes, switch to cost-effective black steel, and ensure the system maintains its design performance for decades.
In a data centre, a sprinkler leak is not a minor maintenance issue. Corrosion in air-filled pipework causes pinhole leaks, and in a dry pipe system a steady loss of pressure can trip the valve and fill the pipes with water. The result can be equipment damage, downtime and an expensive recovery.
FLAIRMO nitrogen generators replace compressed air with dry nitrogen at 99.5% purity, minimising the oxygen and moisture that drive corrosion. In new builds, nitrogen also allows a higher C-factor in the hydraulic design – a real saving at data centre scale. Our systems already protect data centre installations in Denmark.
The N2G-DS4000 connects to your building management system via Modbus TCP/IP, so pressure and purity data appear alongside the rest of your facility monitoring.
Planning a new data centre or upgrading an existing sprinkler system? Contact us today or download the N2G-DS4000 brochure.

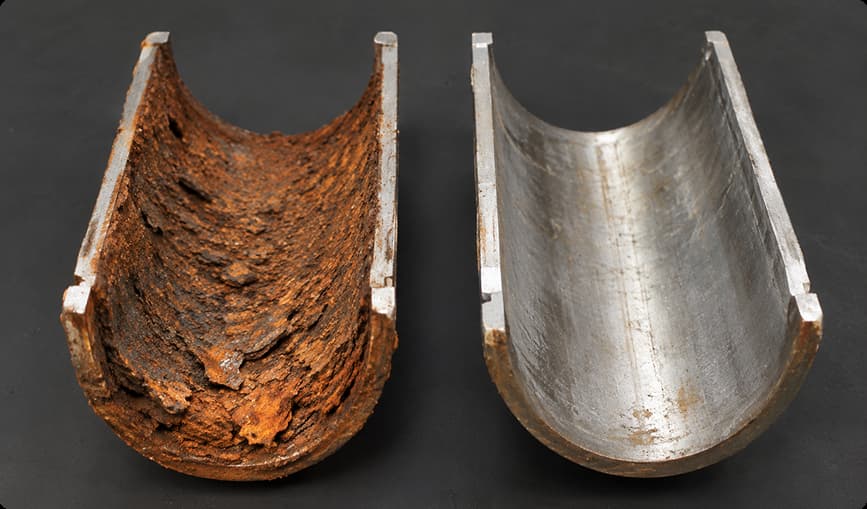

Oxygen and moisture are the two main drivers of internal corrosion in dry pipe and pre-action systems. The N2G-DS4000 replaces compressed air with dry nitrogen, monitors pressure and oxygen levels in each zone, and automatically vents oxygen-rich air until the target purity is reached throughout the pipework.
Less corrosion means fewer leak repairs, fewer unplanned pipe replacements and a system that keeps its design performance over time. The generator itself needs only a simple annual service.
Above the 98% level referenced in NFPA 13.
Oxygen checks and automatic venting in each zone.
Permitted for nitrogen-filled black steel pipe, vs. 100 on air.
Applications
Dry-pipe and pre-action sprinkler systems are installed where pipework can freeze or where accidental water discharge would damage equipment or stock. In these systems, compressed air brings moisture and oxygen into the pipework. The N2G-DS4000 supplies 99.5% nitrogen as the supervisory gas instead, which reduces internal corrosion and the leaks and pressure loss that follow from it.
Water above live racks is a risk in itself. Doubleinterlock pre-action keeps pipework dry until detection and an activated head signal a fire.
Car parks are often open to outside air, and pipes risk freezing in winter. Dry sprinkler systems keep the pipework empty until the system is activat.
Without heating, pipes risk freezing due to the cold temperatures. Dry sprinkler systems is the only option for this type of storage..
Production halls and warehouses with unheated sections, where dry-pipe networks run long distances and repairs interrupt operations.
Loading docks, canopies, attics and other unheated areas served by dry-pipe systems in otherwise heated buildings.
Reference
The N2G-DS4000 is in operation in data centre installations in Denmark, delivered with Danish sprinkler contractors. Ask us about the reference projects.

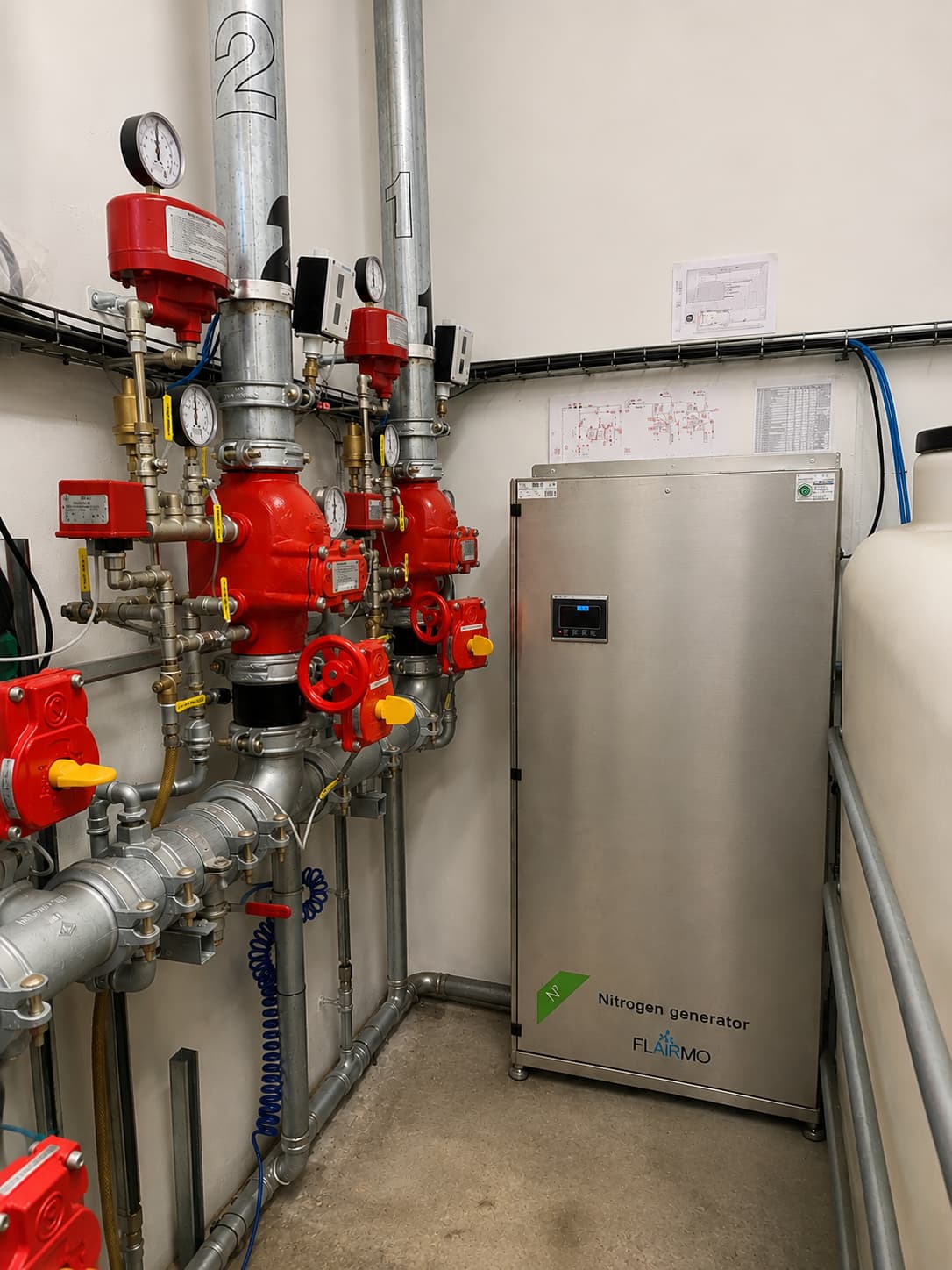

Installation example

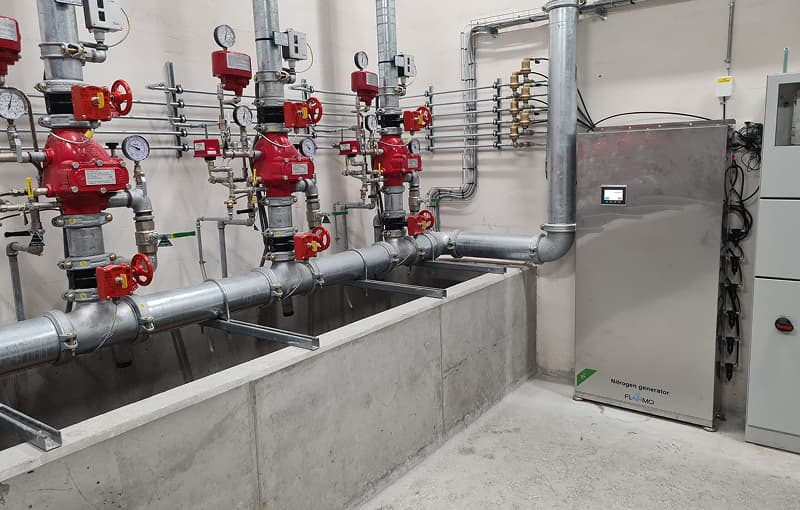

The installation shown is a dry sprinkler system in a Danish car park. With a footprint of 0.23 m², the N2G-DS4000 is placed in the sprinkler room alongside the valve stations.
The integrated compressor is oil-free, so no oil reaches the carbon molecular sieve that separates the nitrogen from the air. Maintenance is a simple annual service.
Each zone has its own O₂ measurement and automatic venting (AUTO-VENT). In a multi-storey car park, this could be one zone per floor, all supplied from a single N2G-DS4000.
Working with Flairmo
We design and manufacture nitrogen generators in Denmark and work directly with sprinkler contractors on each installation.
The sprinkler contractor provides the pipe volume and the required supervisory pressure. We use those figures to configure the N2G-DS4000 for that specific dry sprinkler system.
We build the electronics, tank, valves and hoses ourselves, using components from long-term supplier agreements. The adsorption towers are designed to last 10+ years with a simple annual service.
Annual service kits, spare parts and remote access via VNC (Virtual Network Computing), so you can review system data without a site visit.
Our position
A nitrogen generator should match the system it supplies, so we do not quote a standard unit. Before we quote, we go through the system data with you and confirm what the N2G-DS4000 will deliver.
Send us the pipe volume and supervisory pressure of the system, and we will come back with a configuration and a quotation. If the project is still at the design stage, we can share the technical documentation you need for the specification..
